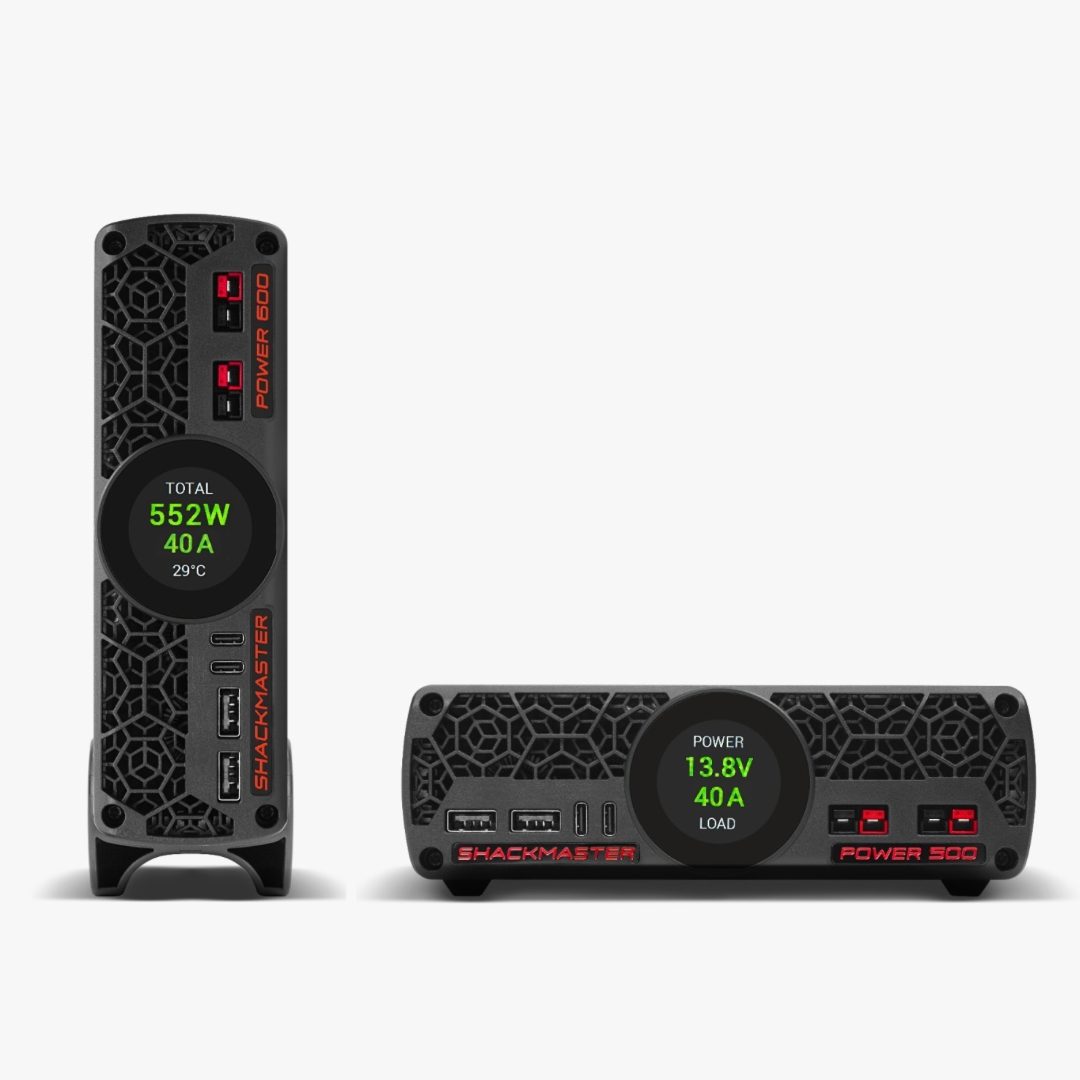

Shackmaster Power 500 sets a new high-quality standard
Power Supply
Rated power
500W
Rated current
36A
Output voltage
13,8 V
Input voltage range
80V to 264V
Input frequency range
47 Hz to 63 Hz
Working temperature range
-30°C to +70°C
Acoustic noise
~21 dB
Overvoltage protection
Yes
Overcurrent protection
Yes
Short circuit protection
Yes
AC current
5,8 А @ 110 VAC | 2,9 А @ 230 VAC
EMC Emission
Class I: Class B, Class II: Class A
EMI noise
200mVp-p
Storage temperature range
-40°C to +85°C, -40°F to +185°F
Energy Conversion Efficiency (ECE)
> 90% (Heat dissipation at maximum load < 60 W)
Ports on the front panel
2 x 3A USB A Charging Ports, 2 x 3A USB Type-C Charging Ports, 2 x 45A Anderson Power Poles
Ports on the rear panel
1 x 30A Binding Post, 1 x 45A Anderson Power Pole, 1 x USB Type-C for PC Communication
Dimensions
172 mm x 55 mm x 185 mm
Weight
1,1 kg
